30mm Speaker: 100 Ohm, 0.15 W
Price:
$2.41
(including GST)
SKU:
1261
Brand:
Shipping:
Calculated at checkout
Stock:
8 in Australia which can ship within 24 hours.
464 internationally which can ship within 7 days
Product Description
  |
| Bottom of the 30mm speaker. |
|---|
This small, 0.15W speaker is a compact way to add high-fidelity sound (compared to typical units this size) to your project. The 100Ω impedance makes it possible to drive this straight from most microcontroller I/O pins, and the pins allow the unit to be soldered directly to a PC board.
This speaker was originally designed for automotive applications (e.g. for the chimes cars make when the headlights are left on). This means the speaker is engineered to operate over a wide temperature range of -40°C to 85°C. Additional specifications can be found in the datasheet (1632k pdf).
 |

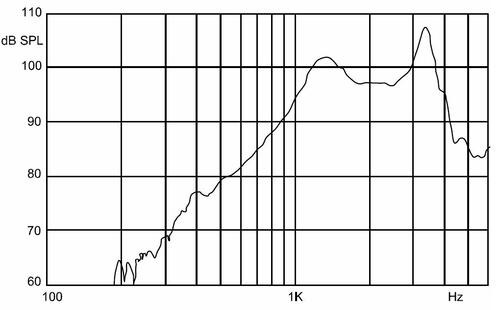

| Speaker frequency response curve. |
|---|
 |

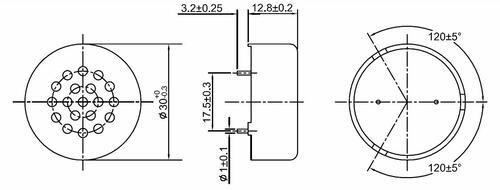

| Speaker dimensioned mechanical drawing. |
|---|
